Overview

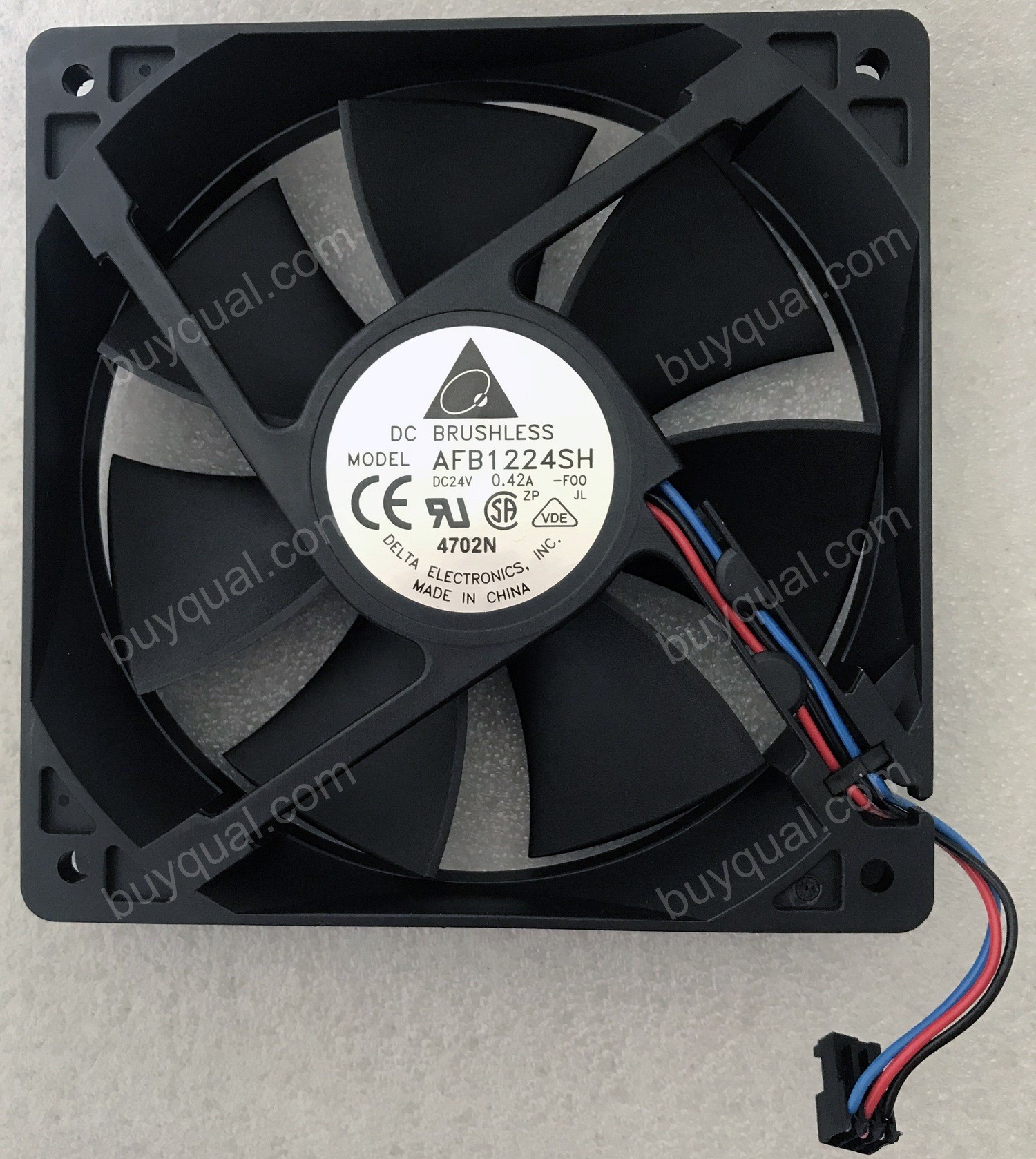

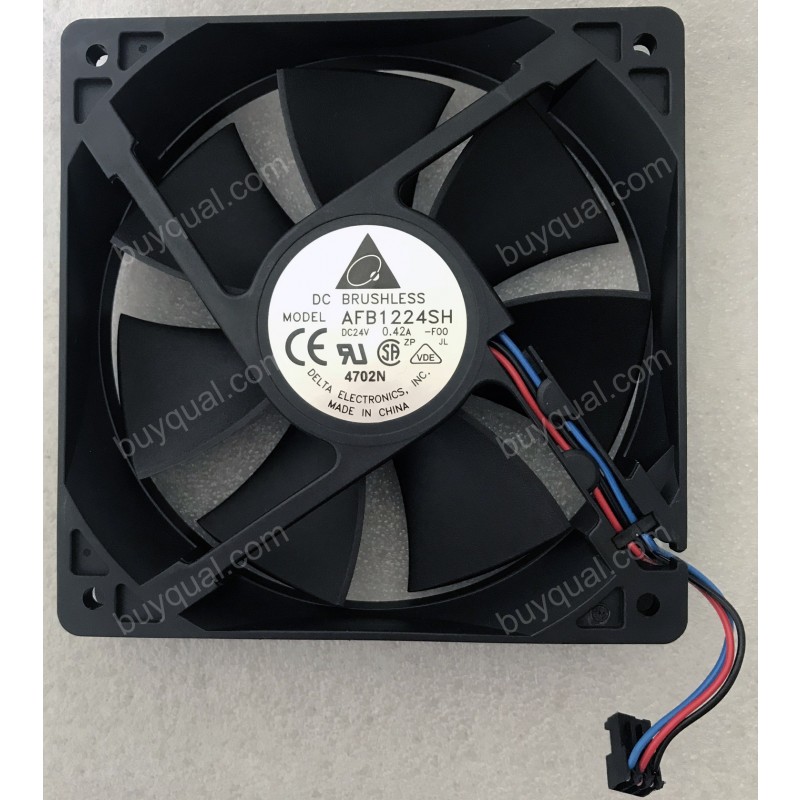

| Manufacturer | DELTA |
|---|---|
| Part number | AFB1224SH |
| other name | 603-1077, |
| AC/DC | DC Fans |
| Fan Type | Axial |
| Size | 120 mm x 120 mm x 25 mm |
| Voltage | 24V |
| Current | 0.42A |
| Termination | 3 wires |
| Speed (RPM) | 3400 |
| Air Flow | 113.1 CFM (3.20 m³/min) |
| Bearing | Ball |
| Shape | Square |
| Series | AFB |
| Static Pressure | 0.430 in H2O (107.1 Pa) |
| Noise | 46.5 dBA |
| Blade_material | Plastic |
| Frame_material | Plastic |
| Notes, Comments & Additional Information | BuyQual recommends ordering by part number whenever possible. |
