Overview

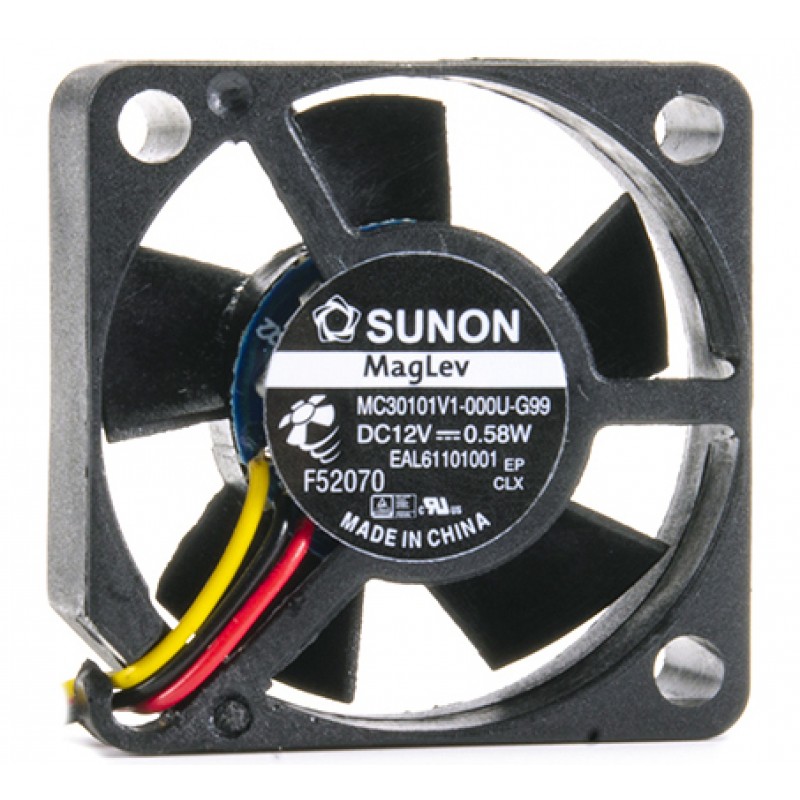

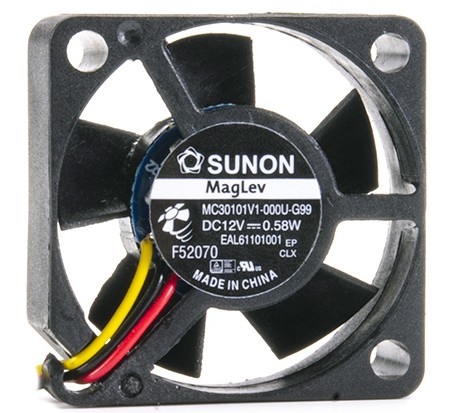

| Manufacturer | Sunon |
|---|---|
| Part number | MC30101V1-000U-G99 |
| other name | 259-1703,MC30101V1-000U-G99-ND,MC3O1O1V1-OOOU-G99,MC30101V1000UG99 |
| AC/DC | DC Fans |
| Fan Type | Axial |
| Size | 30 mm x 30 mm x 10 mm |
| Voltage | 12V |
| Current | 0.048A |
| PoWer | 0.58W |
| Termination | 3 wires |
| Speed (RPM) | 9500 |
| Air Flow | 5.5 CFM (0.156 m³/min) |
| Features | Speed Sensor (Tach) |
| Bearing | Vapo |
| Shape | Square |
| Series | DR MagLev® |
| Static Pressure | 0.150 in H2O (37.3 Pa) |
| Noise | 23 dBA |
| Blade_material | Polybutylene Terephthalate (PBT) |
| Frame_material | Polybutylene Terephthalate (PBT) |
| Notes, Comments & Additional Information | BuyQual recommends ordering by part number whenever possible. |
