Overview
| Manufacturer | Sunon |
|---|---|

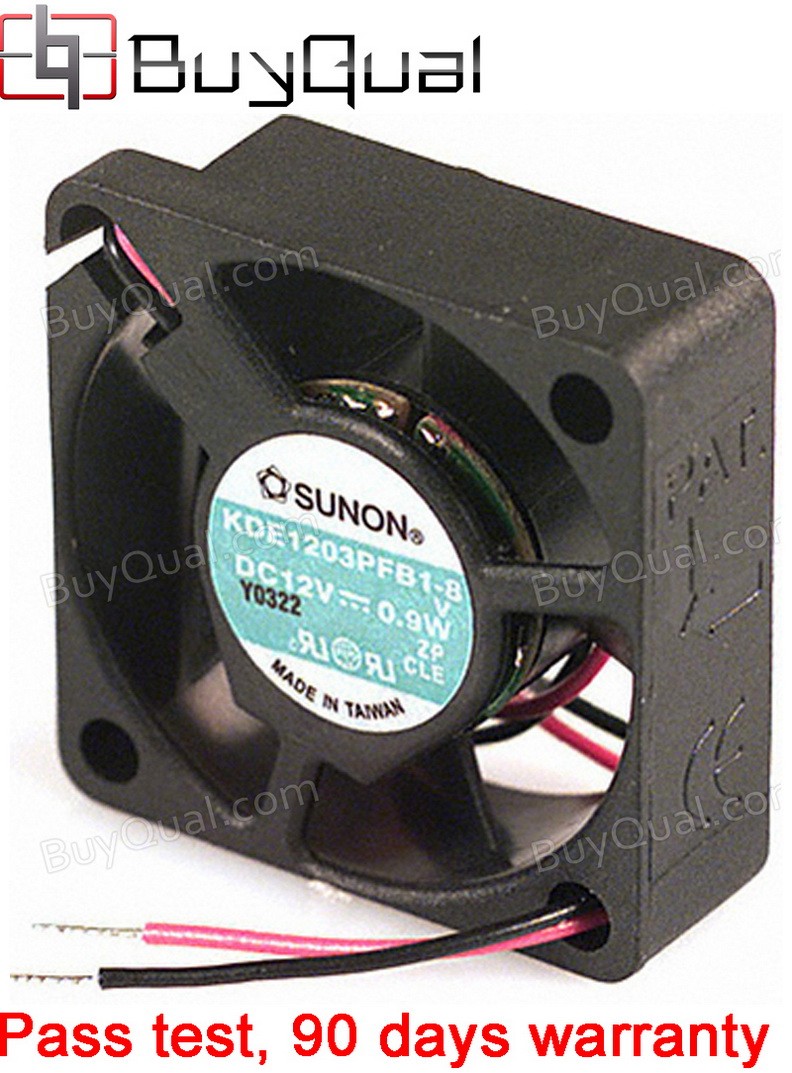

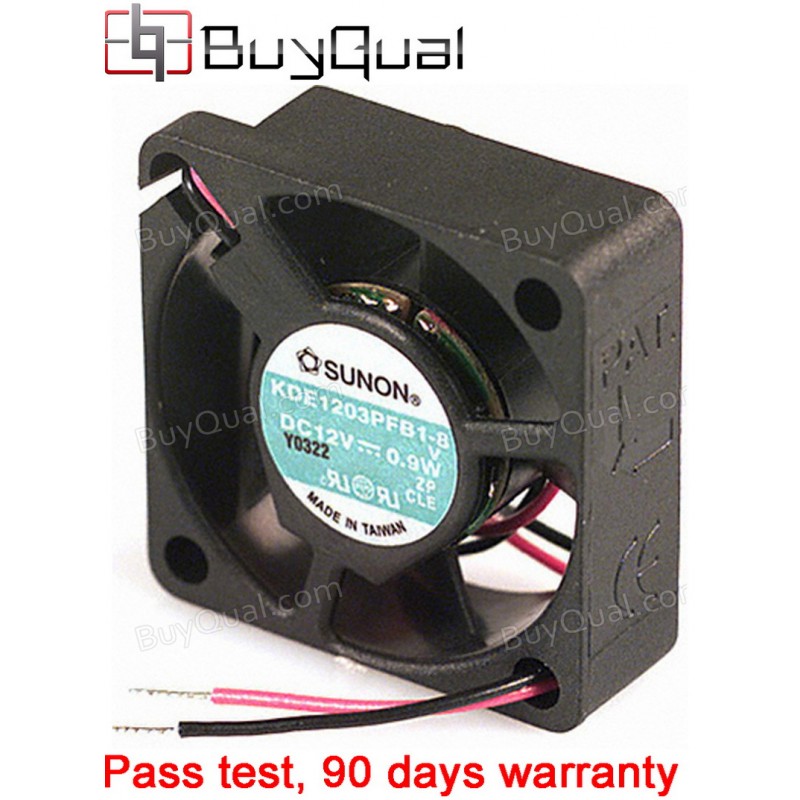

| Part number | KDE1203PFB1-8 (V) |
| other name | 259-1018,E1230PFH18---VE,KDE1203PFB1-8V,KDE1203PFB18V,KDE12O3PFB1-8(V),KDE1203PFB18(V) |
| AC/DC | DC Fans |
| Fan Type | Axial |
| Size | 30 mm x 30 mm x 10 mm |
| Voltage | 12V |
| Current | 0.08A |
| PoWer | 0.9W |
| Termination | 2 wires |
| Speed (RPM) | 8000 |
| Air Flow | 5.1 CFM (0.144 m³/min) |
| Bearing | Ball |
| Shape | Square |
| Series | MagLev® |
| Static Pressure | 0.140 in H2O (34.9 Pa) |
| Noise | 27 dBA |
| Blade_material | Polybutylene Terephthalate (PBT) |
| Frame_material | Polybutylene Terephthalate (PBT) |
| Notes, Comments & Additional Information | BuyQual recommends ordering by part number whenever possible. |
